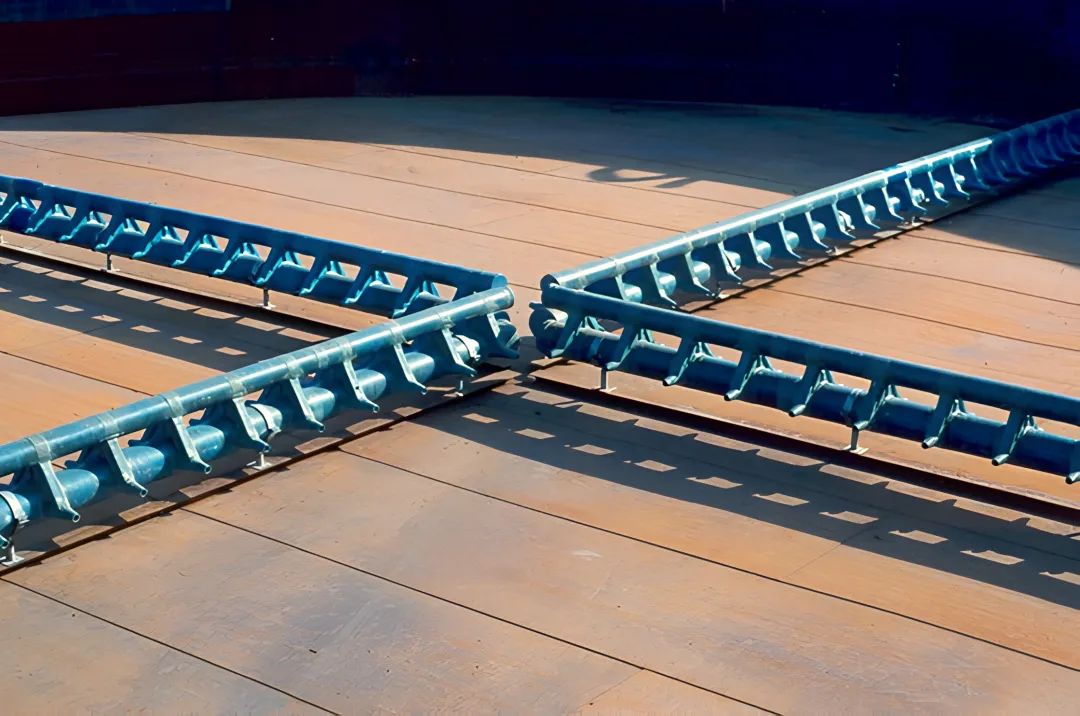

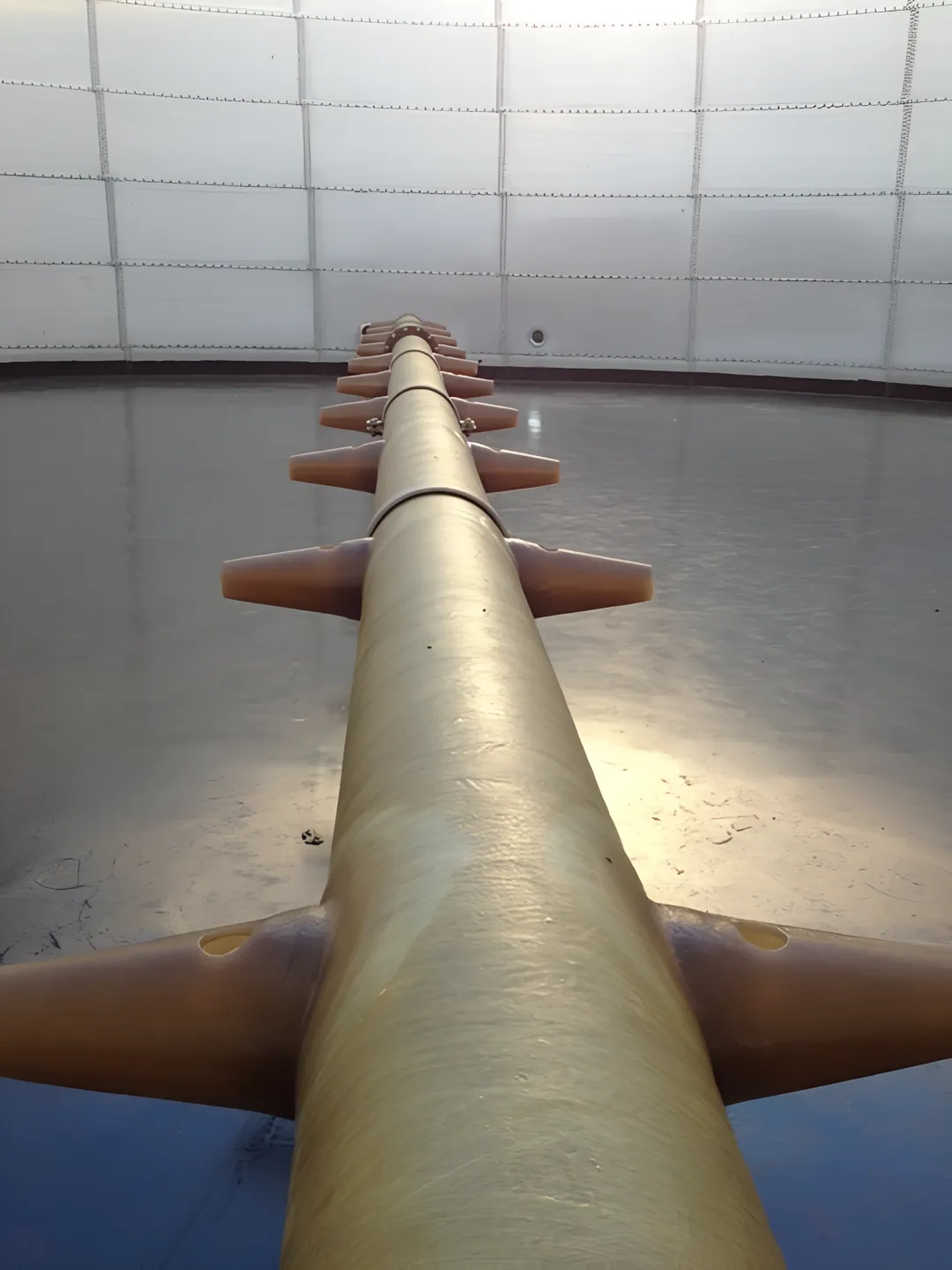

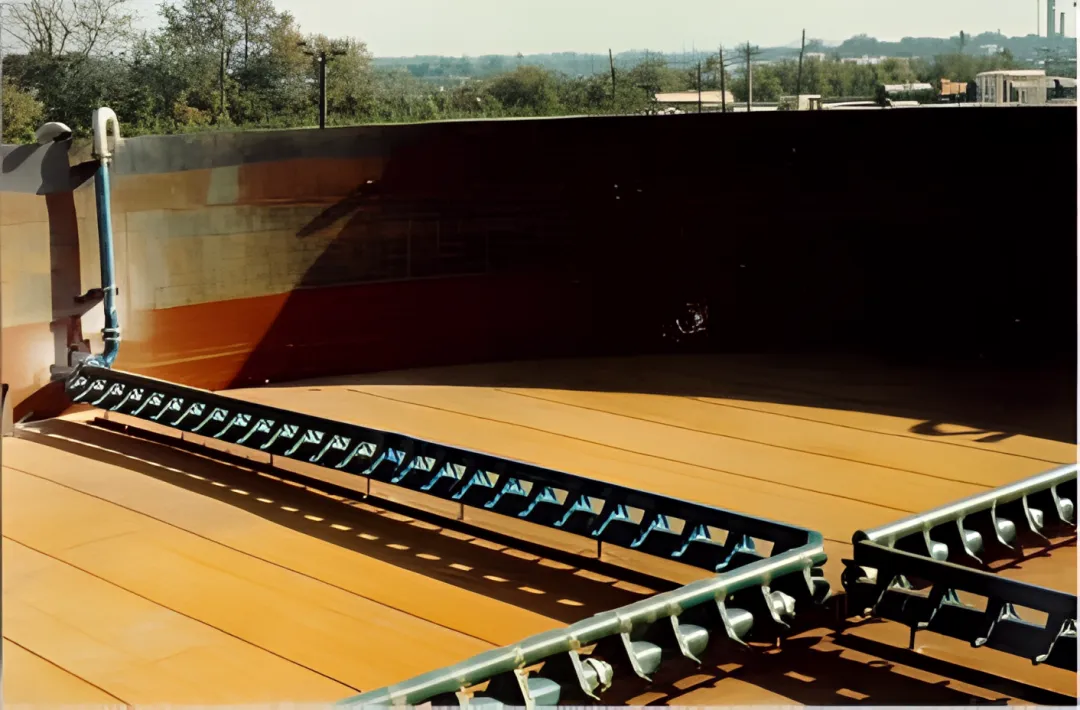

Our hydraulic jet technology uses entrainment to multiply pumping capacity by up to 5X. The high-velocity jets create powerful circulation patterns using less energy than rotating mechanical agitators or diffused aeration systems.

Jet mixers are most cost-effective for tanks over 10,000 gallons and 20 feet deep. Systems can handle tanks up to 250 feet in diameter and 65 feet deep, making them ideal for large-scale industrial applications.

Yes, our sludge mixers feature 1-inch thick nozzles hardened to Brinell 450+ for abrasion resistance. Systems can handle solid particles up to 2.2 inches in diameter without clogging or excessive wear.

With no in-basin moving parts and corrosion-resistant materials like 316 stainless steel or FRP, our systems typically operate for 20+ years in continuous operation with minimal maintenance requirements.

We use computational fluid dynamics (CFD) modeling to analyze your tank geometry, material properties, and process requirements. This ensures optimal nozzle placement and flow patterns for complete mixing with no dead zones.

Maintenance is minimal since pumps and blowers are located outside the tank for easy access. Optional pneumatic backflush systems can virtually eliminate in-basin maintenance, with no need to drain tanks for service.
